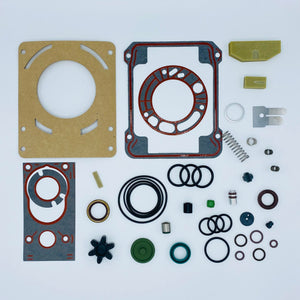

Edwards RV8 Maintenance Kit 65201131RV8
Part Number: 65201131RV8
$260.00
A65201131RV8
DESCRIPTION | PART NO. | QTY |
Viton Shaft Seal (Inner) | E02109066 | 1 |
Viton Shaft Seal (Outer) | E02109124 | 1 |
Shaft Seal Spacer | E02109125 | 1 |
O-Ring | E02122037 | 1 |
O-Ring | E02120077 | 1 |
O-Ring | E02122031 | 1 |
O-Ring | E02122036 | 2 |
O-Ring | E02122055 | 1 |
O-Ring | E02125026 | 3 |
Oil Pump Vane | E20402500G | 1 |
1st Stage Vane | E20402527G | 2 |
2nd Stage Vane | E20402530G | 2 |
Spring (G/B Control) | E20525048 | 1 |
Spring (C/B Control) | E20525049 | 1 |
Coupling Element | E21071077 | 1 |
O-Ring | E23712039 | 1 |
O-Ring | E23724070 | 1 |
O-Ring | E23724071 | 1 |
O-Ring | E23724072 | 1 |
O-Ring | E23724073 | 3 |
Exhaust Diaphragm | E25908123 | 1 |
Coupling | E25908127 | 1 |
Oil Pressure Valve | E25908129 | 1 |
Dump Valve |
E25908226T | 1 |
G/B Check Valve | E26501036 | 1 |
U-Seal | E26501040 | 1 |
Spring (Dump&Check) | E27102016 | 2 |
Oil Box Gasket | E27160005 | 1 |
Cartridge Gasket | E27160006 | 1 |
Top Plate Gasket | E27160007 | 1 |
Seal Gasket | E27160008 | 1 |
Motor Gasket | E65201019 | 1 |
Reed Valve | E65201029 | 1 |
Valve Pad | E70000557 | 1 |
Air Bleed Assembly | 65201005 | 1 |
