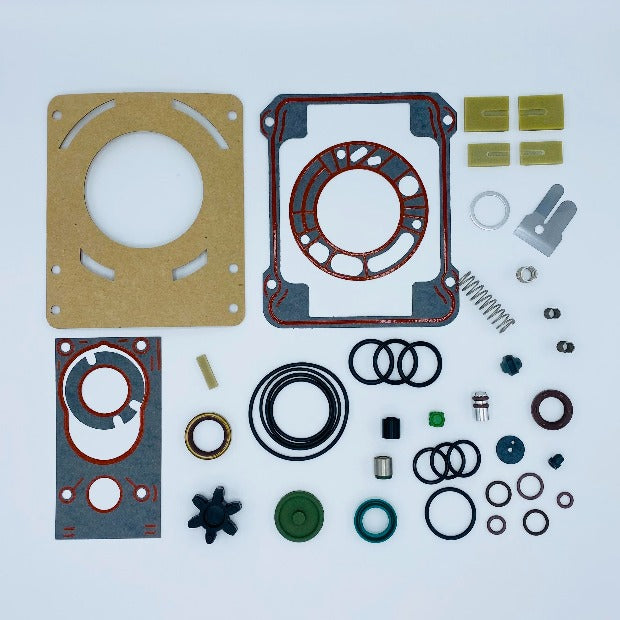

Edwards RV3 Maintenance Kit 65201131RV3
Part Number: 65201131RV3
$285.00
A65201131RV3
| DESCRIPTION | PART NO. | QTY |
| Viton Shaft Seal (Inner) | E02109066 | 1 |
| Viton Shaft Seal (Outer) | E02109124 | 1 |
| Shaft Seal Spacer | E02109125 | 1 |
| O-Ring | E02122037 | 1 |
| O-Ring | E02120077 | 1 |
| O-Ring | E02122031 | 1 |
| O-Ring | E02122036 | 2 |
| O-Ring | E02122055 | 1 |
| O-Ring | E02125026 | 3 |
| Oil Pump Vane | E20402500G | 1 |
| 1st Stage Vane | E20402525G | 2 |
| 2nd Stage Vane | E20402529G | 2 |
| Spring (G/B Control) | E20525048 | 1 |
| Spring (C/B Control) | E20525049 | 1 |
| Coupling Element | E21071077 | 1 |
| O-Ring | E23712039 | 1 |
| O-Ring | E23724070 | 1 |
| O-Ring | E23724071 | 1 |
| O-Ring | E23724072 | 1 |
| O-Ring | E23724073 | 3 |
| Exhaust Diaphragm | E25908123 | 1 |
| Coupling | E25908127 | 1 |
| Oil Pressure Valve | E25908129 | 1 |
| G/B Check Valve | E26501036 | 1 |
| U-Seal | E26501040 | 1 |
| Spring (Dump&Check) | E27102016 | 2 |
| Shouldered Washer | E27154018 | 1 |
| Oil Box Gasket | E27160005 | 1 |
| Cartridge Gasket | E27160006 | 1 |
| Top Plate Gasket | E27160007 | 1 |
| Seal Gasket | E27160008 | 1 |
| Motor Gasket | E65201019 | 1 |
| Reed Valve | E65201029 | 1 |
| Valve Pad | E70000557 | 1 |
| Air Bleed Assembly | 65201005 | 1 |
