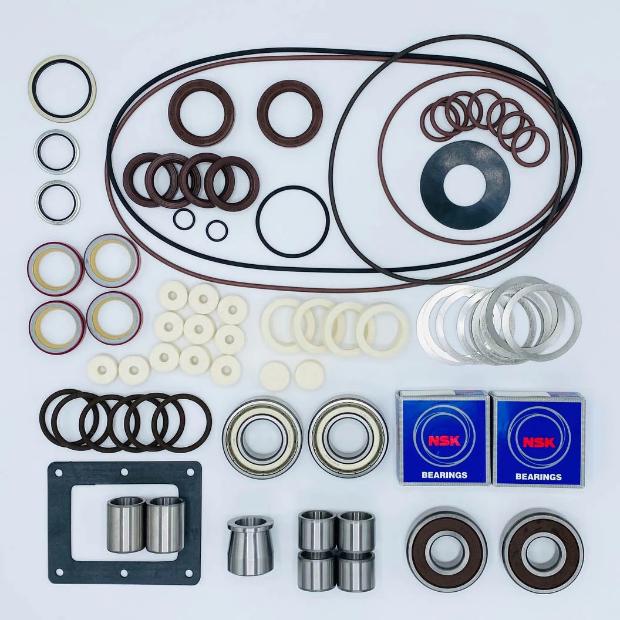

Edwards QMB250 QMB500 Major Repair Kit 30270830
Part Number: 30270830
$529.00
A30270830
| DESCRIPTION | PART NO. | QTY |
| Dowty Seal | E02104008 | 1 |
| Teflon Shaft Seal | E02109052 | 4 |
| Viton Shaft Seal | E02109075 | 2 |
| Viton Shaft Seal | E02109120 | 1 |
| Viton O-Ring | E02120077V | 1 |
| Viton O-Ring | E02122009V | 2 |
| Viton O-Ring | E02122091 | 1 |
| Viton O-Ring | E02125028V | 6 |
| Bearing | E20403010K | 2 |
| Bearing | E20403025K | 2 |
| Hardened Inner Race | E20405024 | 4 |
| Motor Bearing | E21631027 | 2 |
| Felt Dust Ring | E22302005 | 4 |
| Felt Filter - With Hole | E22302015 | 11 |
| Felt Filter - Solid | E22302016 | 2 |
| Viton O-Ring | E23714034 | 7 |
| Viton O-Ring | E23714036 | 1 |
| Viton O-Ring | E23714037 | 1 |
| Viton O-Ring | E23717001 | 1 |
| Tapered Pin | E27013013 | 2 |
| Tapered Pin | E27013014 | 2 |
| Viton Seal | E27159500 | 1 |
| Viton Gasket | E27159547 | 1 |
| Shim - 0.20 mm | E27165008 | 3 |
| Shim - 0.25 mm | E27165009 | 3 |
| Shim - 0.125 mm | E27165032 | 3 |
| Hardened Inner Race | E27801025 | 1 |
| Conical Sleeve | E27802035 | 1 |
| Sight Glass | E29201004 | 3 |
