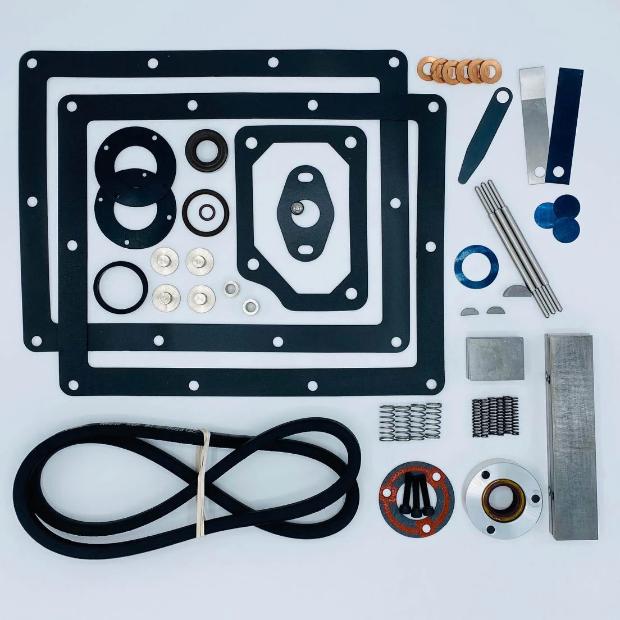

Welch Chemstar 1376N Major Repair Kit 1376K-10

Welch Chemstar 1376N Major Repair Kit 1376K-10

Part Number: 1376K-10

$536.40
DESCRIPTION PART NO. QTY
Lip Seal Assembly 411401D-01 1
Thrust Washer W410508 1
Woodruff Key W410613 2
Woodruff Key W410624 1
Spring Holder W410696 3
V-Belt W410710 1
Pressure Relief Valve W410992 1
Aluminum Washer W411056 2
2nd Stage Vane W411487 2
1st Stage Vane W411684 2
O-Ring W411742 1
Thrust Disk Washer W411766 3
Upper Exhaust Valve W412153 1
Lower Exhaust Valve W412154 1
Valve Spring W412158 4
Valve Block Spacer W412159 2
Steel Ball W4401200 1
O-Ring W612159A 1
Sight Glass W612229A 2
O-Ring W618103 1
Intake Cover Gasket W618278A 1
Oil Case Gasket W618279B 2
Valve W618314A 4
Copper Washer W618456A 6
Vane Spring W618559A 6
O-Ring W619284A 2
O-Ring W620118 2
O-Ring W660304 2
