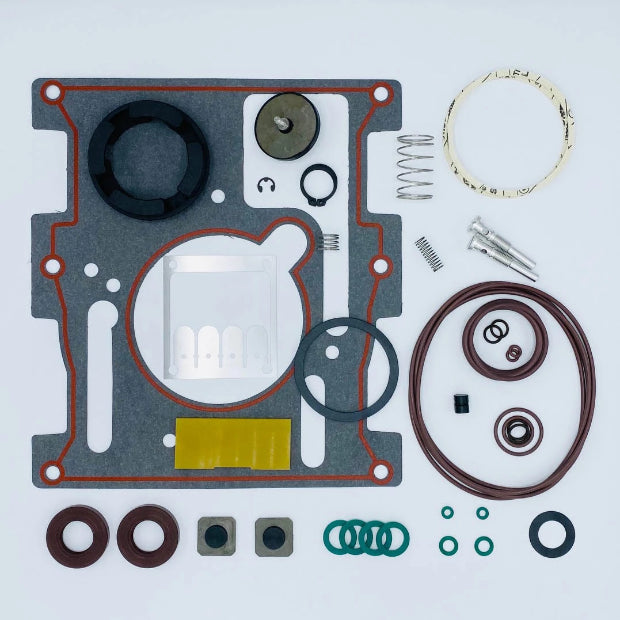

Leybold D30A/AC Major Repair Kit 10170
Part Number: 10170
$309.00
| 1st/2nd Stage Vane | L20010846 | 6 |
| Coupling Key | L22116179 | 1 |
| Rotor Key | L22116188 | 2 |
| Spring | L22162140 | 1 |
| Spring | L22162141 | 1 |
| Spring | L22162142 | 1 |
| Retainer Ring | L23103111 | 3 |
| Snap Ring | L23105108 | 1 |
| Case Gasket | L23811142 | 1 |
| Intake/Exhaust Gasket | L23820158 | 2 |
| Flat Gas Ballast Gasket | L23925225 | 1 |
| Viton Shaft Seal | L23953110 | 2 |
| Viton Plug Gasket | L23955165 | 4 |
| Sight Glass Gasket | L23955171 | 1 |
| O-Ring | L23970147 | 1 |
| O-Ring | L23970148 | 2 |
| O-Ring | L23970304 | 1 |
| O-Ring | L23970411 | 4 |
| O-Ring | L23970436 | 1 |
| O-Ring | L23970516 | 2 |
| Viton ASB Nib | L23973131 | 1 |
| Buna ASB Nib | L23973131B | 1 |
| Oil Nozzle | L39225124 | 2 |
| Air Nozzle | L39225204 | 1 |
| Valve Disc | L40050137 | 1 |
| Valve Plate | L40050138 | 1 |
| Valve Plate | L40164114 | 1 |
| Gas Ballast Valve Plate | L40164117 | 1 |
| Coupling Element | L70100196 | 1 |
| Sight Glass Mounting Bolt | L72000129 | 2 |
| Sight Glass Tube | L72211004 | 1 |
| Flat Viton Gasket | L72590000 | 2 |
| Flat Viton Gasket | L72590001 | 2 |
| O-Ring | L72591000 | 2 |
| O-Ring | L72591001 | 2 |
